BP812

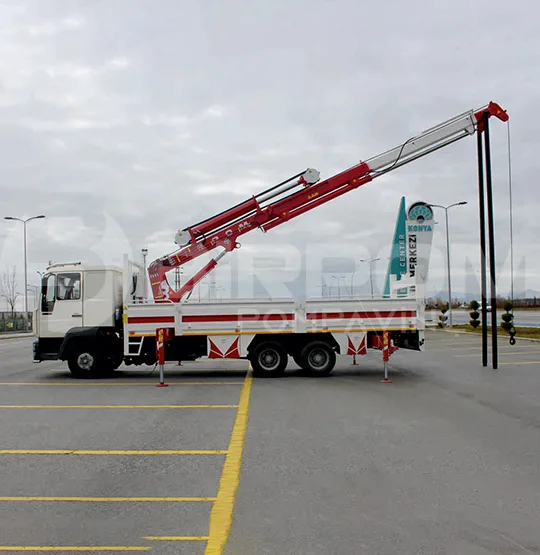

Deep Well Pump Removal Winch BP812
8.0t
Lifting capacity
400m
Well depth
8.0 m
Boom length
3,950 kg
Dead weight
Pump Removal Winches
Submersible pump removal winch rated 8.0 t, for wells down to 400 m.
The BP812 is a pump removal winch developed for pulling and installing deep-well submersible pumps and lifting pipe strings. It works with fine speed control at the wellhead, making the lowering and raising of pipe and column strings a safe operation.
Mounted on the vehicle, the system is driven by a PTO-powered hydraulic unit. Automatic rope spooling and overload protection put the field safety of drilling and water-supply crews first. CE, TSE and ISO certified.
Standard Equipment
- Rope drum
- Moment control
- PTO-driven hydraulic unit
- Automatic rope spooling
Optional Equipment
- Radio remote control
- Joystick control
- Automatic lubrication
BP812
Technical specifications
| Max. lifting capacity | 8,000 kg |
| Max. well depth | 400 m |
| Rope capacity | 450 m |
| Rope diameter | Ø 14 mm |
| Lifting speed | 0–35 m/min |
| Power transmission | PTO + hydraulic pump |
| Boom length | 8.0 m |
| Dead weight | 3,950 kg |
