BP460

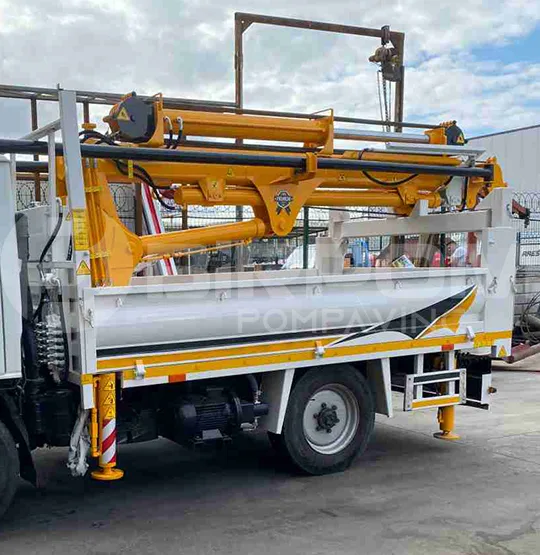

Deep Well Pump Removal Winch BP460
4.5t
Lifting capacity
200m
Well depth
6.0 m
Boom length
2,600 kg
Dead weight
Pump Removal Winches
Submersible pump removal winch rated 4.5 t, for wells down to 200 m.
The BP460 is a pump removal winch developed for pulling and installing deep-well submersible pumps and lifting pipe strings. It works with fine speed control at the wellhead, making the lowering and raising of pipe and column strings a safe operation.
Mounted on the vehicle, the system is driven by a PTO-powered hydraulic unit. Automatic rope spooling and overload protection put the field safety of drilling and water-supply crews first. CE, TSE and ISO certified.
Standard Equipment
- Rope drum
- Moment control
- PTO-driven hydraulic unit
- Automatic rope spooling
Optional Equipment
- Radio remote control
- Joystick control
- Automatic lubrication
BP460
Technical specifications
| Max. lifting capacity | 4,500 kg |
| Max. well depth | 200 m |
| Rope capacity | 250 m |
| Rope diameter | Ø 10 mm |
| Lifting speed | 0–28 m/min |
| Power transmission | PTO + hydraulic pump |
| Boom length | 6.0 m |
| Dead weight | 2,600 kg |
